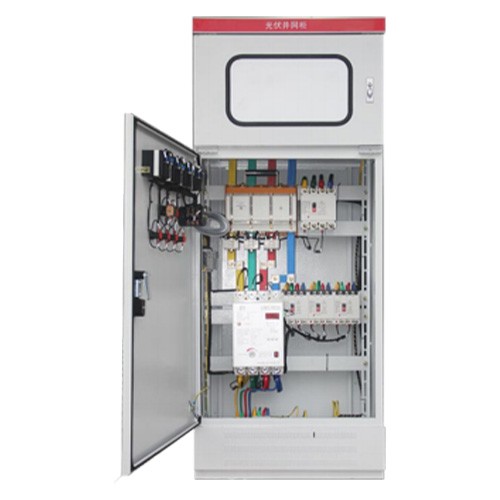

The 200～400KW PV Grid-connected Cabinet is a complete grid-connected equipment for medium & large industrial and commercial distributed PV systems. It integrates bidirectional energy meter, grid-connected circuit breaker, surge protection, monitoring communication and lightning protection. It realizes PV power collection, metering, protection and 380V three-phase grid connection in one stop, serving as the core hub between high-power PV inverters and low-voltage power distribution network.
The 200～400KW PV Grid-connected Cabinet is a complete grid-connected equipment for medium & large industrial and commercial distributed PV systems. It integrates bidirectional energy meter, grid-connected circuit breaker, surge protection, monitoring communication and lightning protection. It realizes PV power collection, metering, protection and 380V three-phase grid connection in one stop, serving as the core hub between high-power PV inverters and low-voltage power distribution network.
Integrated multi-protection functions including overvoltage, undervoltage, short circuit, anti-islanding and surge lightning protection; fast fault tripping to ensure stable operation of high-power PV power stations
Class 0.2S three-phase bidirectional multi-function energy meter with independent sealed metering chamber, supporting time-of-use metering, fully meeting grid acceptance requirements for grid connection
Cold rolled steel cabinet; IP30 for indoor type / IP54 for outdoor type (IP65 optional). Wide temperature adaptability to complex indoor and outdoor conditions of industrial & commercial power stations
Standard RS485 (Modbus‑RTU) communication; optional 4G / Ethernet cloud monitoring for remote data reading, status monitoring and fault alarm
Pre-integrated and pre-commissioned before delivery; only field wiring required for commissioning, greatly reducing on-site construction and assembly workload
Power range covers 200‑400kW, supports up to 6 inverters, suitable for medium & large industrial and commercial distributed PV grid-connected projects
| Product Name | 200‑400KW PV Grid-connected Cabinet |
| Power Coverage Range | 200‑400kW |
| Grid-connected Electrical Parameters | |
| Nominal Grid Voltage & Frequency Range | AC380V/400V, 3-phase 5-wire (TN‑S system); 47.5‑51.5Hz |
| Metering Accuracy | Class 0.2S three-phase bidirectional multi-function energy meter, time-of-use metering supported, independent sealed metering chamber |
| Cabinet Basic Characteristics | |
| Cabinet Material | Cold rolled steel plate, thickness 2.0‑2.5mm, RAL7035 electrostatic powder coating |
| Protection Rating | Indoor GGD cabinet IP30; Outdoor waterproof cabinet IP54 (IP65 optional) |
| Ambient Operating Temperature | -25℃～+55℃ |
| Relative Humidity | ≤95%, non-condensing |
| Applicable Altitude | ≤2000m (derating required above 2000m) |
| Protection & Communication | |
| Anti-islanding Operation Time | ≤0.2s |
| Communication Interface | Standard RS485 (Modbus‑RTU); Optional Ethernet / 4G cloud monitoring |
| Max. Supported Inverter Quantity | 6 units |
| Apparent Power | ≈200‑400kVA |
| Applicable Standards | GB/T17215.1, GB/T19964, GB4348, IEC Standards |
