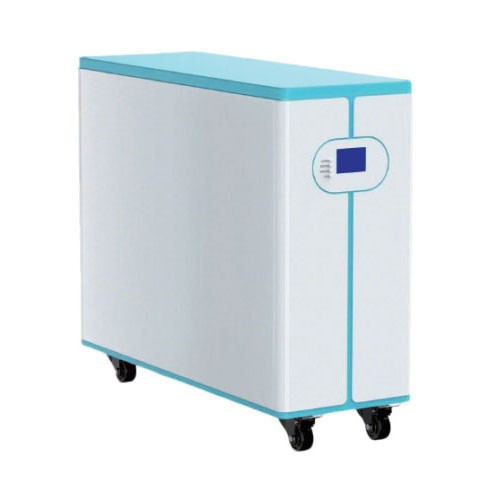

Household wheeled battery pack 51.2V300AH with rated energy of 15360Wh. Continuous charging current: 0~150A, continuous discharging current: 0~200A. Equipped with movable casters at the bottom for flexible transportation. Built-in intelligent BMS protection system and multi-protocol communication interfaces. Suitable for household PV energy storage systems, home UPS backup power, mobile emergency power supply, civil security, small medical equipment power supply and other scenarios.
Household wheeled battery pack 51.2V300AH with rated energy of 15360Wh. Continuous charging current: 0~150A, continuous discharging current: 0~200A. Equipped with movable casters at the bottom for flexible transportation. Built-in intelligent BMS protection system and multi-protocol communication interfaces. Suitable for household PV energy storage systems, home UPS backup power, mobile emergency power supply, civil security, small medical equipment power supply and other scenarios.
Specification 51.2V 300Ah, rated energy up to 15360Wh;
Max continuous discharge current 200A, supporting multiple high-power household loads;
Ultra-long cycle life of 6000 times, excellent economic efficiency for long-term operation.
Equipped with intelligent BMS integrating overvoltage, undervoltage and overload protection;
Real-time monitoring of short circuit and overheating faults, rapid power-off protection upon abnormalities;
Support wide operating temperature range from -20℃ to 60℃, adapting to various installation environments.
Standard equipped with multiple communication interfaces: RS232, RS485 and CAN;
Optional APP monitoring module to remotely check battery operating status;
Compatible with mainstream PV inverters for fast assembly of household PV & storage systems.
Universal casters mounted at bottom for free movement and flexible position adjustment;
Ideal for outdoor PV energy storage and mobile emergency backup power against blackouts;
Integrated cabinet structure with neat appearance, easy handling and deployment.
| Product Name | Household Wheeled Battery Pack |
| Model | YD51.2V300AH (Wheeled Type) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 300Ah |
| Rated Energy | 15360Wh |
| Continuous Charge & Discharge Current | Charge: 0~150A / Discharge: 0~200A |
| Cut-off Voltage for Charge & Discharge | Charge: 58.4V / Discharge: 44.8~46.5V |
| Communication Interface | RS232, RS485, CAN |
| Cycle Life | 6000 Cycles |
| Operating Environment | Temperature: -20~60℃; Humidity ≤95%; Altitude ≤4000m |
| Product Dimensions | 680*250*510 / 770*320*750mm |
| Weight | 110/129kg |
