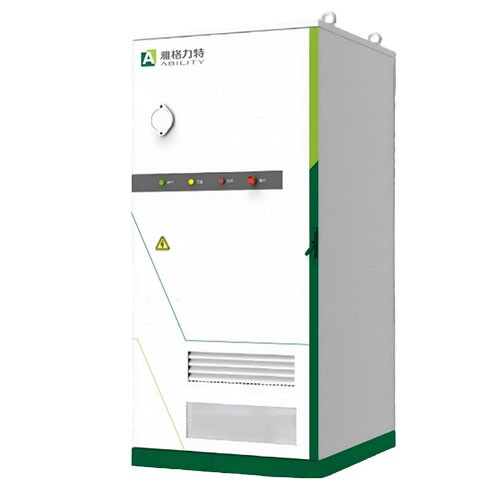

The 125kW/261kWh integrated energy storage system is widely applied in commercial & industrial scenarios including peak shaving and valley filling, power capacity expansion, photovoltaic power consumption and backup power supply. It can be installed in manufacturing factories, industrial parks, commercial complexes, hospitals, data centers, PV & energy storage charging stations, office buildings, large power consumers with multiple tenants and enterprises equipped with distributed photovoltaic systems.
The 125kW/261kWh integrated energy storage system is widely applied in commercial & industrial scenarios including peak shaving and valley filling, power capacity expansion, photovoltaic power consumption and backup power supply. It can be installed in manufacturing factories, industrial parks, commercial complexes, hospitals, data centers, PV & energy storage charging stations, office buildings, large power consumers with multiple tenants and enterprises equipped with distributed photovoltaic systems.
Support peak shaving & valley filling, power capacity expansion, local PV consumption and emergency backup power supply;
Suitable for factories, industrial parks, hospitals, data centers, charging stations, commercial buildings and other facilities;
Perfectly meet the demands of energy storage projects matched with distributed photovoltaics.
Rated power 125kW, energy capacity 261kWh, ideal for small and medium-sized C&I energy storage projects;
AC rated voltage AC400V, DC rated voltage DC832V;
Compatible with 50/60Hz power frequency systems for domestic and overseas projects.
Overall dimension 1100(W)×1300(D)×2450(H), high integration and easy deployment;
Adopt liquid cooling for balanced temperature control and extended service life of battery system;
Control power supply AC220/DC24V to power built-in BMS, PCS and temperature control system.
Cabinet protection class IP54, dustproof and splash-proof for open-air outdoor installation;
Integrate battery clusters, converter, fire protection, temperature control and monitoring system;
Complete overall commissioning before delivery; only AC & DC cable connection required on site for rapid commissioning.
| Product Name | 125kW/261kWh Integrated Energy Storage System |
| Model | ABILITY-Z-261A |
| Cabinet Dimensions (W*D*H) | 1100(W) × 1300(D) × 2450(H) |
| Control Power Supply | AC220/DC24V |
| Rated Power / Capacity | 125kW / 261kWh |
| AC Rated Voltage | AC400V |
| DC Rated Voltage | DC832V |
| Cooling Method | Liquid Cooling |
| Frequency | 50/60Hz |
| Protection Class | IP54 |
Contact: Hubei Ability Electric Group Co., Ltd.
Phone: +86-18872006188
E-mail: monica@ability-electric.com
Whatsapp:+86-18872006188
Add: No. 2 Dongsheng Road, Hujia Industrial Park, Shiyan City, Hubei Province, China
