20-30KW DC Charger

The 20-30kW integrated DC charger integrates intelligent control, accurate metering, multi-protocol communication and easy installation. It delivers safe, reliable, stable and efficient charging service for electric vehicles, suitable for low-power charging scenarios such as shopping malls, office buildings and industrial parks.

20-30KW DC Charger - Product Details

20-30KW DC Charger

Core Product Advantages

Safe & Intelligent

High protection and low-noise design with strong environmental adaptability;
24 dynamic data monitoring items including abnormal BMS data, battery thermal runaway and connector over-temperature for high charging safety;
Support OTA remote upgrade and online status diagnosis to ensure high operation stability;

Powerful Performance & Elegant Appearance

Peak efficiency over 95%;
Ultra-wide charging voltage range compatible with various vehicle models;
Cold light auxiliary lighting and embedded QR code design with exquisite outlook.

Product Specifications

Model	SNZC-20K/30K-A1
Rated System Power	20KW-30KW
Input Parameters
Rated Input Voltage	380VAC
Input Voltage Range	323VAC-437VAC
Input Current	32A, 57A
Output Parameters
Output Voltage Range	50VDC-750VDC
Max. Output Current	60A, 80A
Basic Characteristics
Peak Efficiency	≥95%
BMS Auxiliary Power	12VDC (24VDC customizable)
Activation Method	QR Scan, Card Swipe, VIN

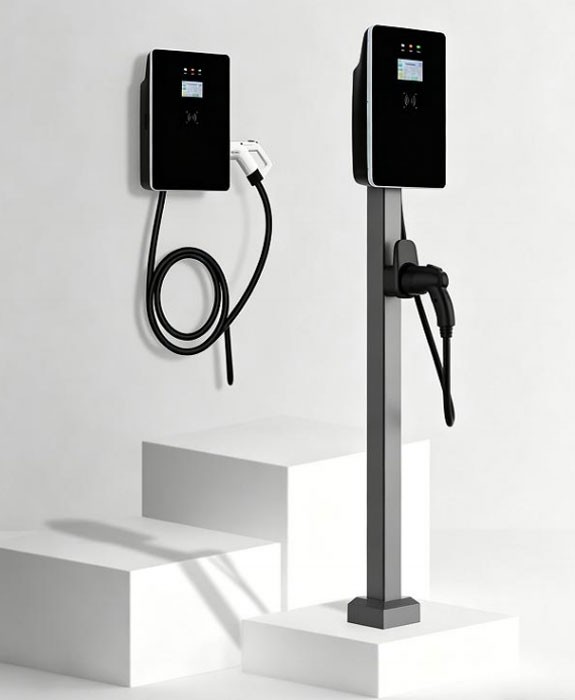

Installation Type	Wall-mounted, Floor-standing (Optional)
HMI	7-inch Touch LCD Screen
Communication Interface	Ethernet / 4G LTE (Optional)
Number of Charging Ports	1
Charging Cable Length	5m
Protection Class	IP54
Operating Temperature	-20℃~+50℃ (Power derating above +50℃ up to +70℃)
Operating Humidity	5%~95%RH (Non-condensing)
Altitude	2000m (Power derating required for 2000m-4000m)
Dimensions(WDH)	580780206mm(HWD)
Weight (Including Modules, Excluding Pedestal)	≤65kg
