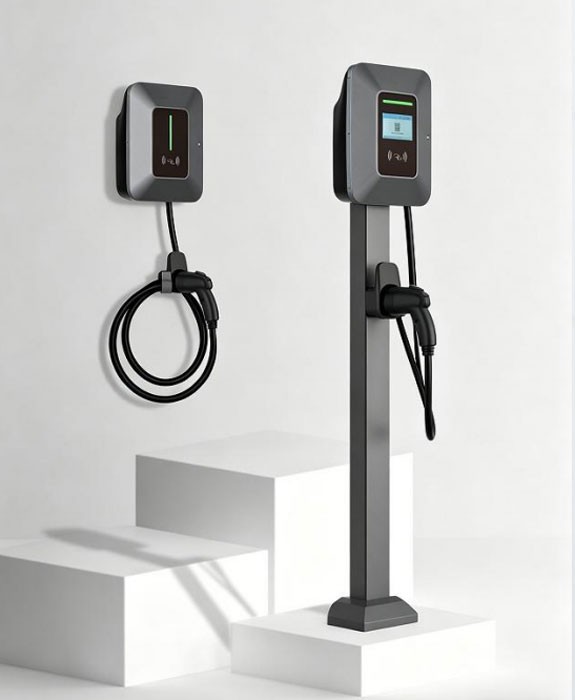

7-14KW AC Charger

Exquisite appearance and easy installation. Designed with minimalist self-service operation, it provides safe, reliable, stable and efficient charging service for electric vehicles. Suitable for shopping malls, office buildings, industrial parks, residential communities and other charging scenarios.

7-14KW AC Charger - Product Details

7-14KW AC Charger

Core Product Advantages

Safe & Reliable

Real-time monitoring of operating status and multiple control protection functions to ensure safety throughout charging
Housekeeping-style management of charging data to guarantee data integrity and security

Convenient & Intelligent

Multiple charging activation methods including card swiping, WeChat Pay and Alipay, simple operation
The control board reserves various expansion interfaces for flexible and convenient equipment upgrade
Support online operation and settlement to realize intelligent operation management

Product Specifications

Model	SNJC-7K-A1, SNJC-14K-A2
Rated System Power	7-14kW
Input Parameters
Rated Input Voltage	220VAC
Rated Input Current	32A/2*32A
Rated Input Frequency	50Hz
Output Parameters
Output Voltage Range	187VAC-253VAC
Output Current Range	≤32A
Operating Efficiency	≥99%
Basic Characteristics
Protection Class	IP55
Activation Method	QR code scan, card swipe (Optional: Bluetooth, Plug & Charge, Scheduled Charging)
Installation Type	Wall-mounted, Pedestal (Optional)
Communication Interface	Ethernet / 4G Full Netcom (Optional)
Number of Charging Ports	1
Cable Length	5m
Operating Temperature	-30℃ ~ +55℃
Operating Humidity	5%~95%RH (Non-condensing)
Altitude	2000m (Power derating required for 2000m~4000m)
Overall Dimensions(WDH)	200mm137mm380mm
Pedestal Dimensions(WDH)	121mm121mm1200mm
Unit Weight (Excluding Pedestal)	≤4kg
