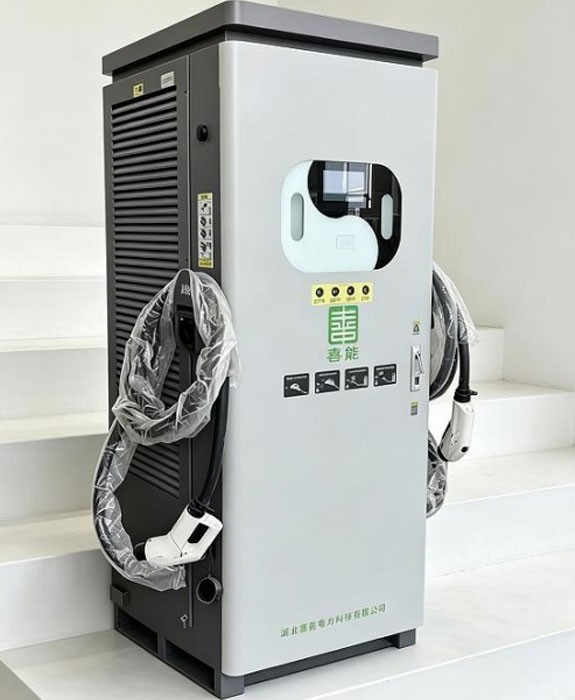

320KW-480KW DC Charger

The 320-480kW integrated DC charger delivers fast charging for electric vehicles and offers safe, economical and convenient solutions. It is suitable for high-power fast charging scenarios including bus stations, fast charging stations and dedicated charging depots.

320KW-480KW DC Charger - Product Details

320KW-480KW DC Charger

Core Product Advantages

Safe & Reliable

Charger-grade protection technology, windproof, rainproof and dustproof with strong environmental adaptability;
Independent control unit and intelligent protection unit for high equipment reliability;
24 dynamic data monitoring items including abnormal BMS data, battery thermal runaway and connector over-temperature to guarantee charging safety;

Powerful Performance & Cost-Effective Appearance

Low standby power consumption to reduce operating costs;
Ultra-wide charging voltage range compatible with various vehicle models;
Support OTA remote upgrade and online status diagnosis, compatible with all types of large vehicles.

Product Specifications

Model	SNZC-320K/480K-A2
Rated System Power	320KW-480KW
Input Parameters
Rated Input Voltage	380VAC
Input Voltage Range	323VAC-437VAC
Input Current Range	530A, 800A
Output Parameters
Output Voltage Range	150VDC-1000VDC
Max. Output Current	400A for single gun, 800A for dual guns
Basic Characteristics
Peak Efficiency	≥96%
BMS Auxiliary Power	12VDC (24VDC customizable)
Activation Method	QR Scan, Card Swipe, VIN
Installation Type	Floor-standing
HMI	7-inch Touch LCD Screen
Communication Interface	Ethernet / 4G LTE (Optional)
Number of Charging Ports	2
Charging Cable Length	5m (Optional: 7m / 10m)
Protection Class	IP54
Operating Temperature	-20℃~+50℃ (Power derating required from +50℃ to +70℃)
Operating Humidity	5%~95%RH (Non-condensing)
Altitude	2000m (Power derating required for 2000m-4000m)
Dimensions(WDH)	2030780620mm
Weight (Including Modules, Excluding Pedestal)	≤265kg
