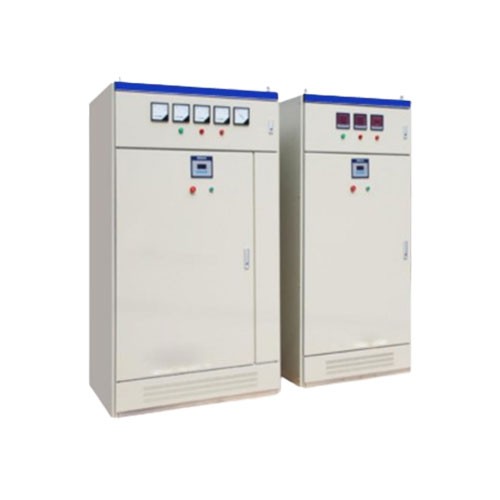

Equipped with contactless / composite switches for zero-cross switching, no inrush current upon switching;

Controller collects voltage, current and reactive power in real time for accurate dynamic regulation;

Fast response to load fluctuation to match grid reactive power demand continuously.

Effectively compensates system reactive power and improves grid power factor;

Reduces line loss and transformer reactive loss to save electricity cost;

Stabilizes bus voltage and avoids low voltage and excessive voltage drop.

Compensation capacity: 60-360Kvar, applicable to various working conditions with current 32-493A;

Cabinet dimensions (400-800)*(300-1000)*2200mm, configurable on demand;

Control power supply supports multiple AC/DC voltages, compatible with various control systems.

Rated short-time withstand current 15kA, capable of resisting short-circuit faults;

Rated insulation voltage 660V with sufficient insulation safety margin;

IP30 protection class, dustproof and anti-solid foreign object, suitable for indoor power distribution rooms.
