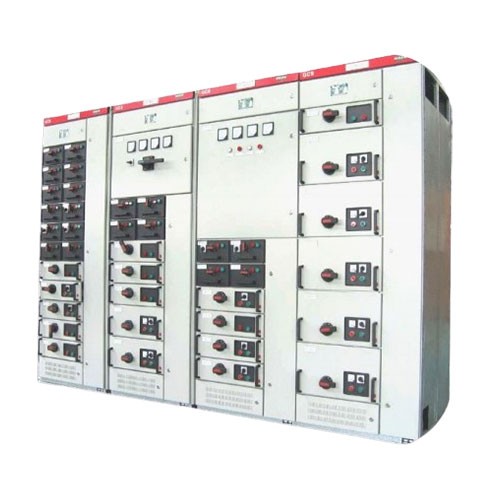

GCS Low Voltage Withdrawable Switchgear is used for energy conversion, distribution and control of power supply, power distribution, motor control centers and capacitor compensation in low-voltage distribution systems of power plants, substations, petrochemical industries, industrial & mining enterprises and buildings. When applied in low-voltage power control centers and motor control centers of large-capacity power plants and large-scale petrochemical projects, it can meet special requirements for computer interface connection.
GCS Low Voltage Withdrawable Switchgear is used for energy conversion, distribution and control of power supply, power distribution, motor control centers and capacitor compensation in low-voltage distribution systems of power plants, substations, petrochemical industries, industrial & mining enterprises and buildings. When applied in low-voltage power control centers and motor control centers of large-capacity power plants and large-scale petrochemical projects, it can meet special requirements for computer interface connection.
Suitable for power distribution projects in power plants, substations, petrochemical industry, various factories and building complexes;
Supports multiple functions including power distribution, motor control and reactive power capacitor compensation;
Capable of connecting to computer systems for large petrochemical and thermal power projects with strong intelligent compatibility.
Main busbar rated current: 1000A-4000A, short-time withstand current up to 80kA;
Feeder cabinet busbar: 1600A-3000A, short-time withstand current up to 50kA;
Control cabinet busbar: 400A-1000A, short-time withstand current up to 30kA with clear grading.
Control power supply compatible with multiple specifications: AC380/220/110V, DC220/110V;
Optional cabinet dimensions: (600, 800, 1000)*(600, 800, 1000)*2200mm;
Withdrawable structure; maintenance and unit replacement without full cabinet power cut-off.
Rated operating voltage 380V, rated insulation voltage 660V, power frequency 50Hz;
IP40 protection class for effective dust and solid foreign object resistance;
Modular assembly enables convenient circuit expansion and reconstruction, lowering operation & maintenance costs.
| Product Name | Low Voltage Withdrawable Switchgear |
| Model | GCS |
| Cabinet Dimensions (W*D*H) | (600, 800, 1000)*(600, 800, 1000)*2200mm |
| Control Power Supply | AC380/220/110V, DC220/110V |
| Rated Current | Main Busbar: 1000A-4000A Feeder Cabinet Busbar: 1600A-3000A Control Cabinet Busbar: 400-1000A |
| Rated Short-time Withstand Current | Main Busbar: 80kA Feeder Cabinet: 50kA Control Cabinet: 30kA |
| Rated Operating Voltage | 380V |
| Rated Insulation Voltage | 660V |
| Frequency | 50Hz |
| Protection Class | IP40 |
