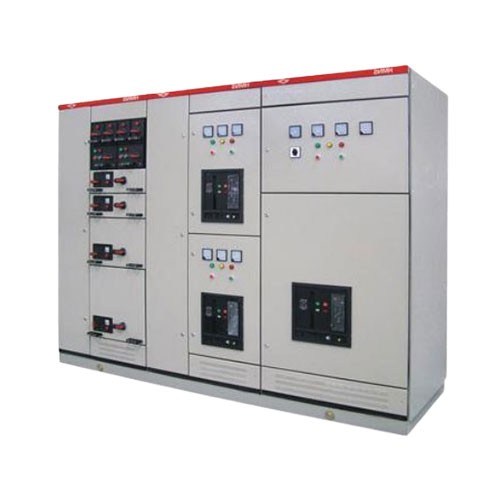

MNS Low Voltage Withdrawable Switchgear is applicable to power plants, substations, petrochemical industry, metallurgy, textile factories, residential communities, high-rise buildings and other facilities. It serves as power distribution equipment for energy conversion, distribution and control in AC 50~60Hz power systems with rated operating voltage up to 660V.
MNS Low Voltage Withdrawable Switchgear is applicable to power plants, substations, petrochemical industry, metallurgy, textile factories, residential communities, high-rise buildings and other facilities. It serves as power distribution equipment for energy conversion, distribution and control in AC 50~60Hz power systems with rated operating voltage up to 660V.
Modular drawer unit design; replacement and maintenance can be carried out without power cut, improving operation & maintenance efficiency;
Graded capacity design; rated current of main busbar up to 4000A, branch circuit current ranges from 400A to 1000A;
Multiple cabinet dimensions available; flexible width & depth to match power distribution layout of equipment rooms.
Rated insulation voltage 660V, rated short-time withstand current up to 80kA with excellent short-circuit resistance;
Control power supply supports AC380/220/110V, DC220/110V, compatible with both AC and DC power supply;
Widely used for low-voltage power distribution in power plants, chemical, metallurgical projects, residential areas and high-rise buildings.
| Model | MNS |
| Cabinet Dimensions (W*D*H mm) | (600, 800, 1000) * (600, 800, 1000) * 2200 |
| Control Power Supply Parameters | |
| AC Control Supply | AC380V/220V/110V |
| DC Control Supply | DC220V/110V |
| Current Parameters | |
| Rated Current of Main Busbar | 1600A ~ 4000A |
| Rated Current of Distribution Busbar | 400A ~ 1000A |
| Voltage & Withstand Parameters | |
| Rated Operating Voltage | 660V |
| Rated Insulation Voltage | 660V |
| Rated Short-time Withstand Current | 30kA ~ 80kA |
| Rated Peak Withstand Current | 63kA ~ 176kA |
| Applicable Frequency | AC 50Hz ~ 60Hz |
| Application | Energy conversion, distribution and control for power systems; suitable for power plants, petrochemical, metallurgy, residential communities, high-rise buildings and other scenarios |
